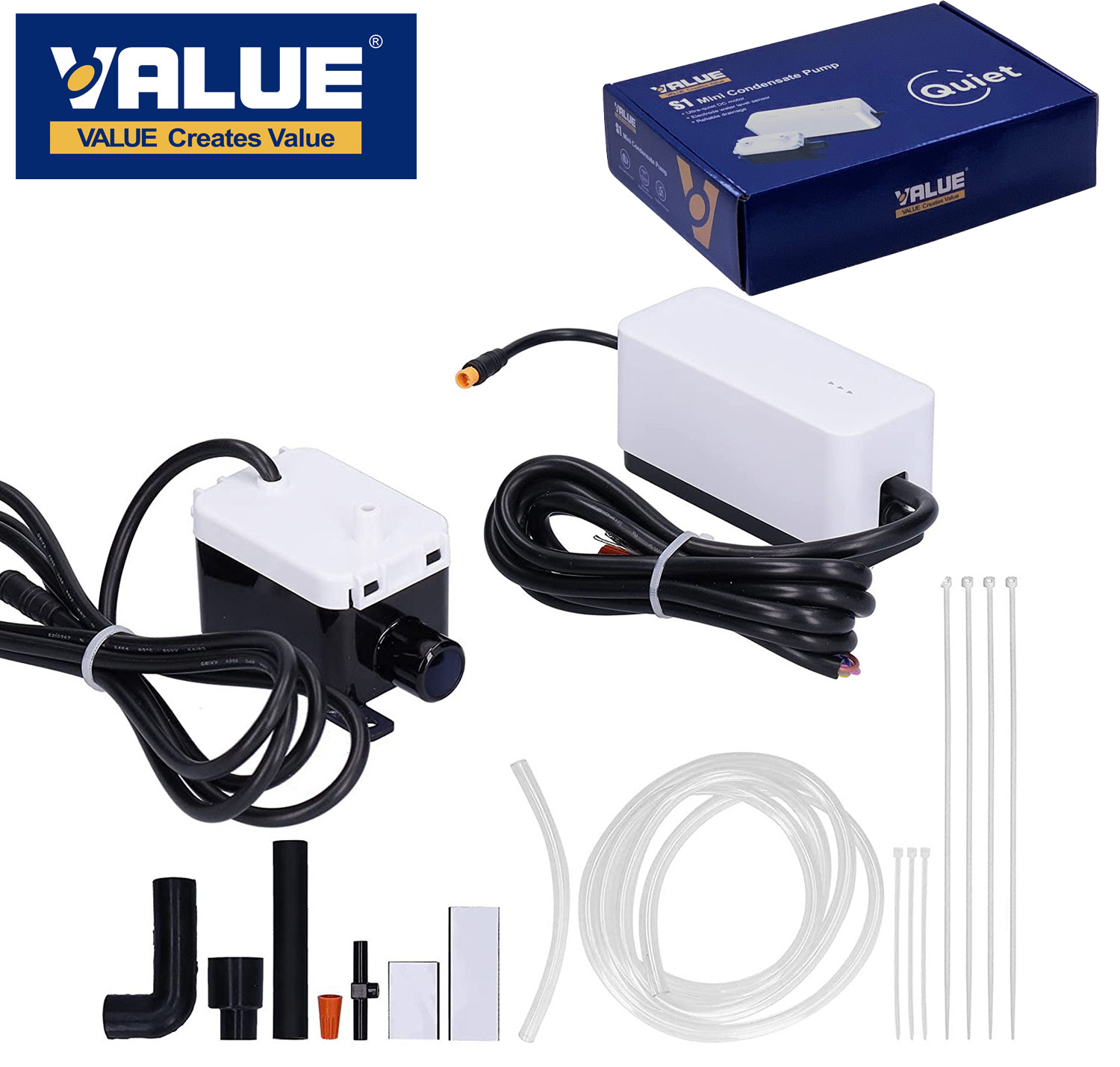

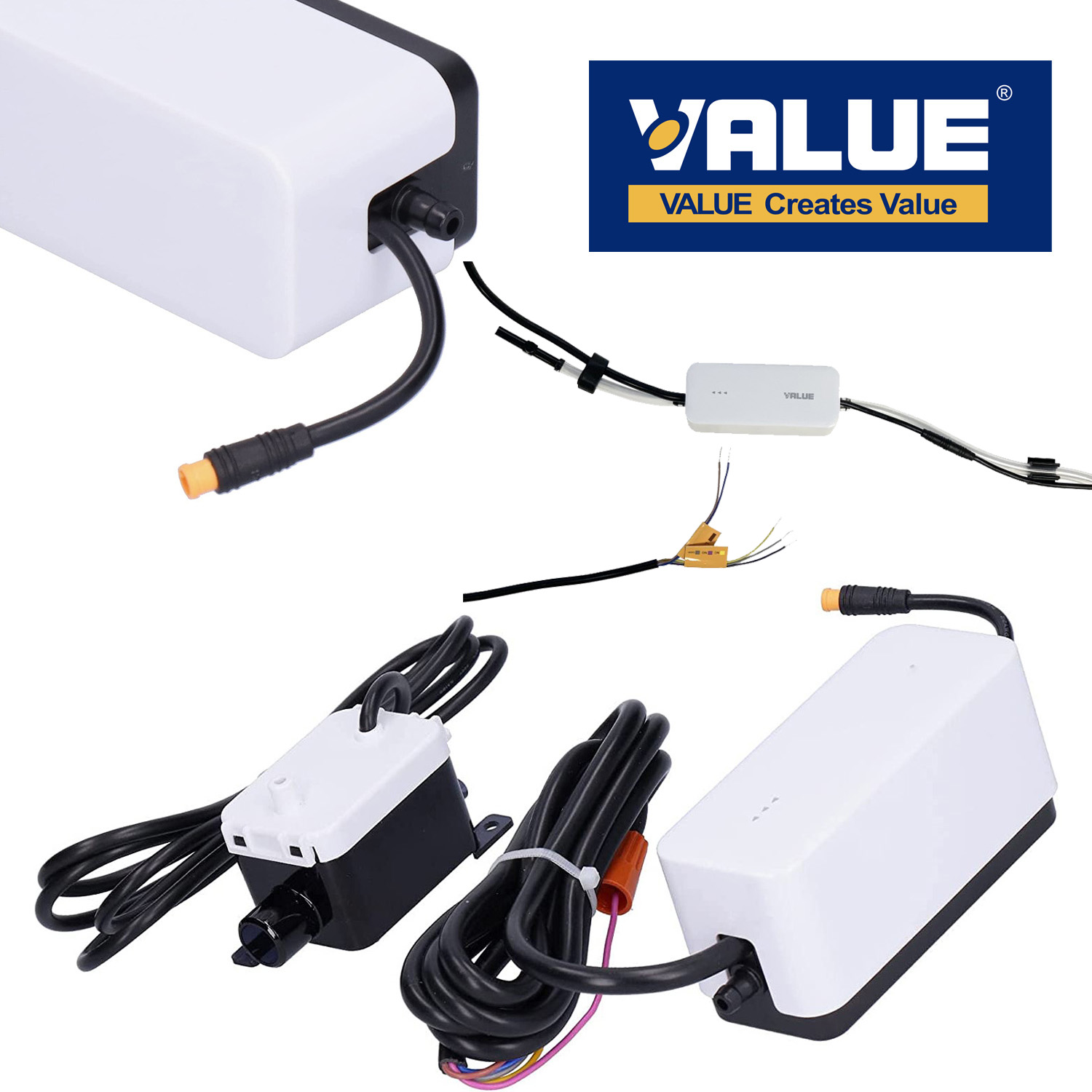

VALUE S2 mini-slim condensate pump - flow rate 40 litres/hour, suitable for splits up to 45,000 BTU/hour (13 kW) - compact and multi-application, silent and robust
The new line of condensate pumps from the world's leading HVACR equipment and components manufacturer VALUE.
Widely applied to split, ducted and cassette type air conditioning units, as well as other appliances that produce small amounts of condensate.
Equipped with brushless (brushless) motor, safety switch, and probe sensor that maintain the high performance of the pump, they ensure quiet and durable operation with a long service life.
- Compact, easy & multi-application
- Quick connection, convenient maintenance
- Brushless DC motor, low noise & vibration
- Design focused on ensuring a high level of silence
- Electrode water level sensor
INSTRUCTIONS:

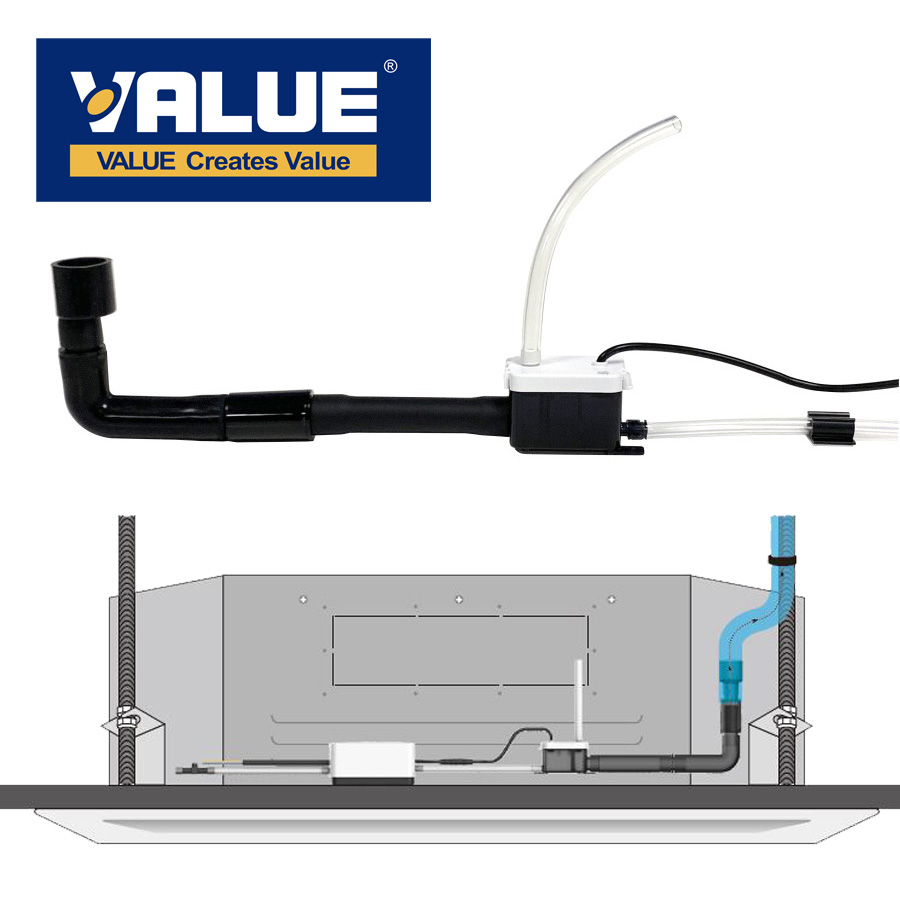

The pump can be easily installed in the A/C duct
The pump can be easily installed in the back of the A/C indoor unit
TECHNICAL SPECIFICATIONS:
Power supply: 220 V 50 Hz
Vertical discharge height/head (max): 10 metres
Flow rate (max): 40 litres/hour
Tank capacity: 50 ml
Internal diameter of condensate outlet pipe: 6 mm.
Suitable for mini splits up to 45,000 BTU/hour (13 kW)
Sound level at 1 metre: 21 db(A)
Ambient temperature: 0-50 °C
Pump dimensions: 126x44x(h) 52 mm.
Tank dimensions: 83x40x(h) 47 mm.
Flow rate/discharge head:
